4 Pack White Nylon Plate Swivel Brake Plain Bore 80mm 750kg Load Per Set

£81.72 excl. VAT £98.06

  • *Bar options

    Include a bar with your set.

Product code: BZEH80NYFP/SB/SET

Klarna
Downloads: PDF Datasheet Request drawings

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

Description

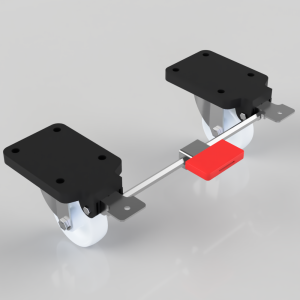

2 x Swivel and 2 x Braked pressed steel castors with a top plate fixing fitted with a white nylon wheel with a Plain Bore and a fixed position total lock brake. Wheel diameter 80mm, tread width 35mm, overall height 125mm, plate size 180mm x 115mm, hole centres 105mm x 80mm. Load capacity 250kg per castor, 750kg load capacity per set.

Additional information

Bearing Type

Plain

Castor Type

Swivel, Swivel with Total Lock Brake

Colour / Shore Hardness

White Nylon

Diameter (mm)

80

Fixing Option

Plate

Fork Thickness (mm)

4

Height (mm)

125

Hole Centres (mm)

105 x 80

Load Capacity (kg)

750

Temperature Resistance

-30 °C TO +80 °C

To Suit Fixing Bolt (mm)

10

Top Plate Thickness (mm)

18

Tread (mm)

35

Weight 1.102 kg
Wheel Material

Nylon
