44% OFF
Black Elastic Rubber 65ShoreA Plate Swivel Castor 80mm 180kg Load
Original price was: £142.31.£79.84Current price is: £79.84. excl. VAT £95.81
Product code: JAB80ERBJSWB
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description

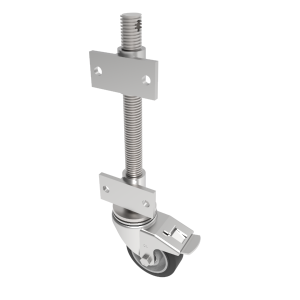

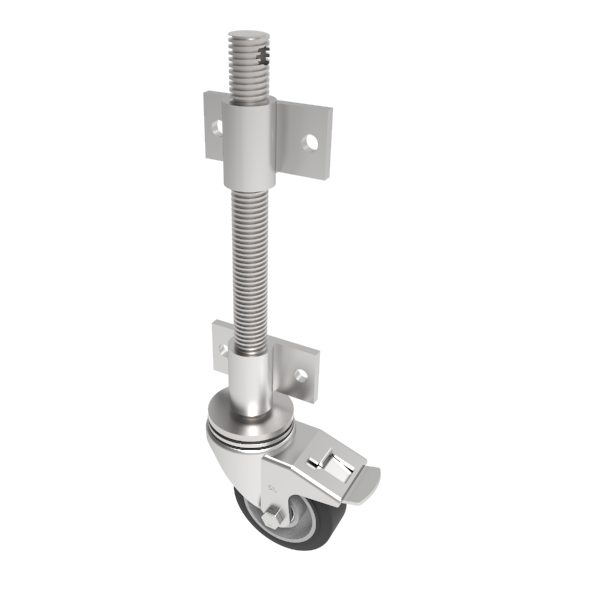

Open screw thread jacking castor with side fitting nuts with 160mm lift fitted with a 80mm zinc plated swivel pressed steel castor with a 65 shore A black elastic rubber tyre on aluminium centred wheel with a ball bearing bore, total lock brake and a load capacity of 180kg Please note Jacking castors are rated on a different principal to other castors and we recommend the total lifted load is divided over just 2 jacking units. extra safety point is when jacked up please beware of any obstacles as a sudden shock could result in bending the thread but more likely the castor will tear away from the screw thread. Please refer to the BIL catalogue or request a drawing. REACH compliant also PAH-Free rubber to confirm to EU-directive 2005/69/EC
Additional information
| Bearing Type | Ball |
|---|---|
| Castor Height (mm) | 110 |
| Castor Type | Swivel with Total Lock Brake |
| Colour / Shore Hardness | Black Elastic Rubber on Aluminium Rim / 65 Shore A |
| Diameter (mm) | 80 |
| Fixing Option | Plate |
| Height (mm) | 420 |
| Lifting Stroke (mm) | 160 |
| Load Capacity (kg) | 180 |
| Swivel Radius (mm) | 125 |
| Temperature Resistance | -30 °C TO +80 °C |
| To Suit Fixing Bolt (mm) | 12 |
| Tread (mm) | 40 |
| Weight | 3.28 kg |
| Wheel Material | Rubber on Aluminium |
