0Brown Polyurethane Fixed Plate Castor 160mm 500kg
£54.06 excl. VAT £64.87
Product code: BZSPHF160PABJFP
![Klarna](https://www.bilgroup.co.uk/wp-content/themes/bil/assets/images/klarna-v3.png)
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description

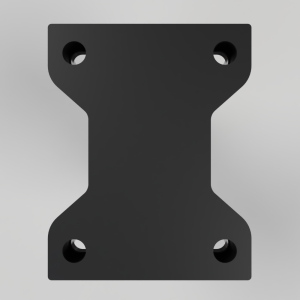

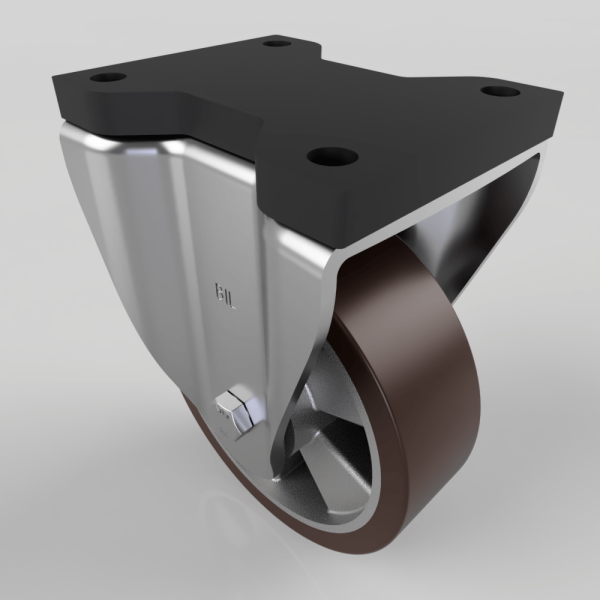

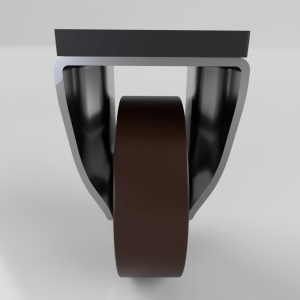

Pressed steel fixed castor with a top plate fixing fitted with a polyurethane tyred aluminium centred wheel with ball bearings. Wheel diameter 160mm, tread width 50mm, overall height 209mm, top plate 135mm x 110mm, hole centres 105mm x 80mm. Load capacity 500kg.
Additional information
Bearing Type | Ball |
---|---|
Castor Type | Fixed |
Colour / Shore Hardness | Brown Polyurethane on Aluminium Rim / 93 Shore A |
Diameter (mm) | 160 |
Fixing Option | Plate |
Fork Thickness (mm) | 5 |
Height (mm) | 209 |
Hole Centres (mm) | 105 x 80 |
Load Capacity (kg) | 500 |
Plate Size (mm) | 135 x 110 |
Temperature Resistance | -20 °C TO +70 °C |
To Suit Fixing Bolt (mm) | 10 |
Top Plate Thickness (mm) | 19 |
Tread (mm) | 50 |
Weight | 2.877 kg |
Wheel Material | Polyurethane on Aluminium |
