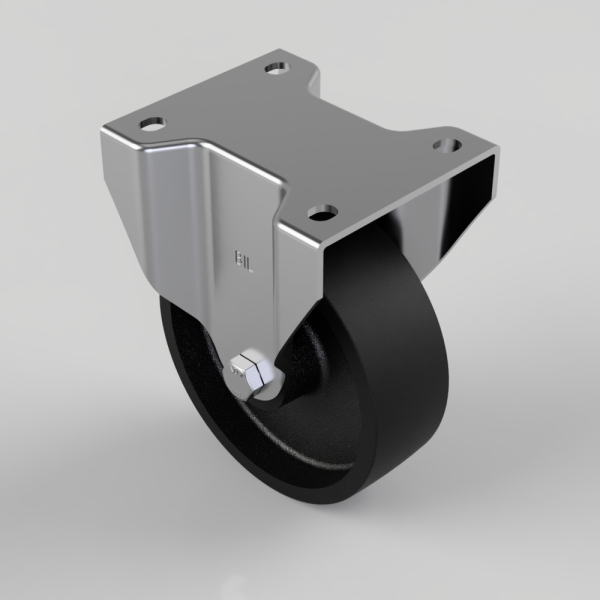

Cast Iron Plate Fixed Castor 150mm 500kg Load
£34.19 excl. VAT £41.03
Product code: BZPHF150CI
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description

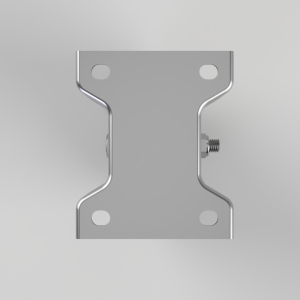

Pressed steel fixed castor with a top plate fixing fitted with a cast iron wheel with a plain bore. Wheel diameter 150mm, tread width 50mm, overall height 190mm, top plate 135mm x 115mm, hole centres 105mm x 80/75mmmm. Load capacity 500kg.
Additional information
| Bearing Type | Plain |
|---|---|
| Castor Type | Fixed |
| Colour / Shore Hardness | Black Painted Cast Iron |
| Diameter (mm) | 150 |
| Fixing Option | Plate |
| Fork Thickness (mm) | 3.5 |
| Height (mm) | 190 |
| Hole Centres (mm) | 105 x 80/75 |
| Load Capacity (kg) | 500 |
| Plate Size (mm) | 135 x 115 |
| Temperature Resistance | -30 °C TO +80 °C |
| To Suit Fixing Bolt (mm) | 10 |
| Top Plate Thickness (mm) | 3.5 |
| Tread (mm) | 50 |
| Weight | 4.004 kg |
| Wheel Material | Cast Iron |
