Cast Iron Plate Swivel Castor 200mm 500kg Load
£63.69 excl. VAT £76.43
Product code: BZPH200CIBJ
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description

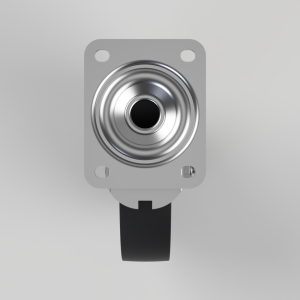

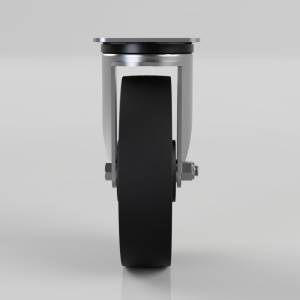

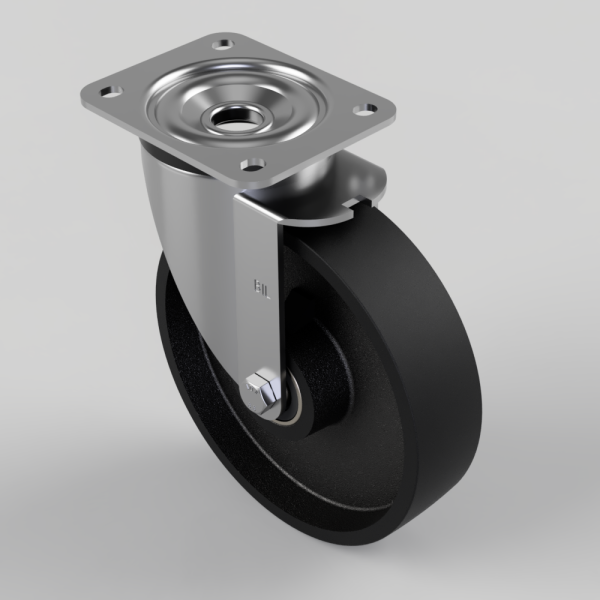

Pressed steel swivel castor with a top plate fixing fitted with a black cast iron wheel with ball bearing. Wheel diameter 200mm, tread width 50mm, overall height 238mm, top plate 135mm x 110mm, hole centres 105mm x 80/75mm. Load capacity 500kg.
Additional information
| Bearing Type | Ball |
|---|---|
| Castor Type | Swivel |
| Colour / Shore Hardness | Black Painted Cast Iron |
| Diameter (mm) | 200 |
| Fixing Option | Plate |
| Fork Thickness (mm) | 5 |
| Height (mm) | 238 |
| Hole Centres (mm) | 105 x 80/75 |
| Load Capacity (kg) | 500 |
| Plate Size (mm) | 135 x 110 |
| Swivel Radius (mm) | 153 |
| Temperature Resistance | -30 °C TO +80 °C |
| To Suit Fixing Bolt (mm) | 10 |
| Top Plate Thickness (mm) | 5 |
| Tread (mm) | 50 |
| Wheel Material | Cast Iron |
