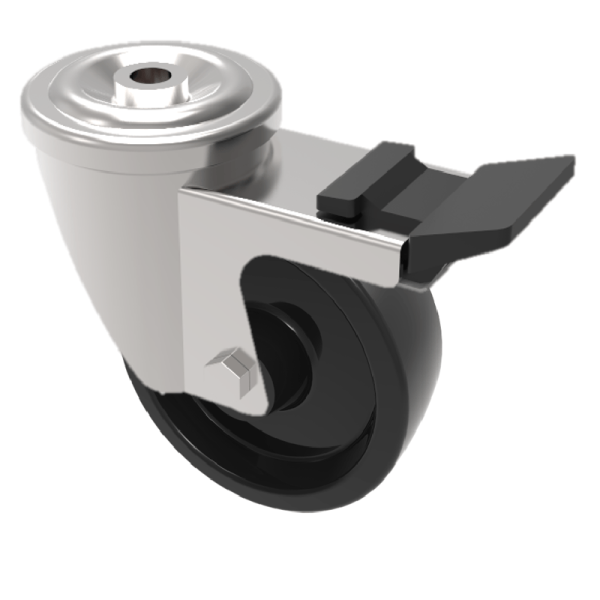

Ditherm Bolt Hole Swivel Castor 100mm 200kg Load
£40.54 excl. VAT £48.65
Product code: SSMH100AN3BH12SWB
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description
Stainless steel Grade 304 swivel castor with a 12mm bolt hole fitted with a black Ditherm wheel with a plain bearing and total lock brake. Wheel diameter 100mm, tread width 35mm, overall height 133mm. Load capacity 200kg at a maximum 270c. REACH compliant, RoHs Compliant, USDA approved FDA approved.
Additional information
| Bearing Type | Plain |
|---|---|
| Castor Type | Swivel |
| Colour / Shore Hardness | Black High Temperature Ditherm |
| Diameter (mm) | 100 |
| Fixing Option | Bolt Hole |
| Fork Thickness (mm) | 2.5 |
| Head Dia (mm) | 78 |
| Height (mm) | 128 |
| Load Capacity (kg) | 200 |
| Swivel Radius (mm) | 92 |
| Temperature Resistance | -40 °C to +280 °C |
| To Suit Fixing Bolt (mm) | 12 |
| Tread (mm) | 35 |
| Wheel Material | Ditherm |
