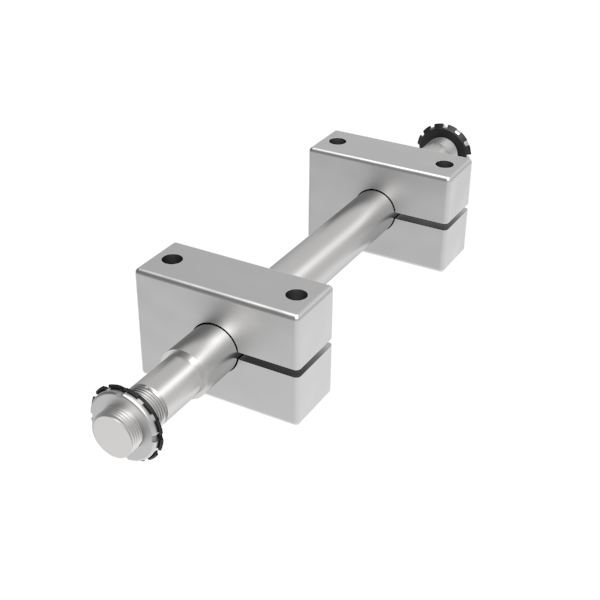

0Double Mount Steel Axle Mounting Diameter 25mm 1500kg Load
Price on application ‐ please contact sales
All our double axle assemblies are manufactured to order.
Product code: DMA25#
![Klarna](https://www.bilgroup.co.uk/wp-content/themes/bil/assets/images/klarna-v3.png)
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description

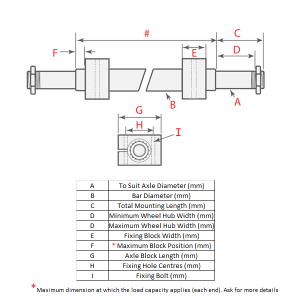

Double axle assembly, to suit axle diameter 25mm, bar diameter 30mm, total axle length 62mm, minimum axle hub length 40mm, maximum axle hub length 52mm, block width 40mm, *collar width 75mm, fixing block width 105mm, fixing hole centres 70mm, fixing bolt 12mm, load 1500kg
*Maximum position of block. If the block is moved past this point the load will be affected. Ask for more details. #Donates your requireed length specified by you, please put this in the remarks when ordering in mm.
**MANUFACTURED TO ORDER**
Additional information
Bar Diameter (mm) | 30 |
---|---|
Fixing Block Length (mm) | 105 |
Fixing Bolt (mm) | 12 |
Fixing block width (mm) | 40 |
Fixing hole centres (mm) | 70 |
Load Capacity (kg) | 1500 |
Maximum Block Position (mm) | 75 |
Maximum Wheel Hub Width (mm) | 52 |
Minimum Wheel Hub Width (mm) | 40 |
To suit axle diameter (mm) | 25 |
Total Mounting Length (mm) | 62 |
