Elastic Rubber Cast Iron Plate Swivel Castor 200mm 400kg Load

£63.96 excl. VAT £76.75

Product code: BZMM200CRBJ

Klarna
Downloads: PDF Datasheet PDF Drawing CAD Drawing

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

Description

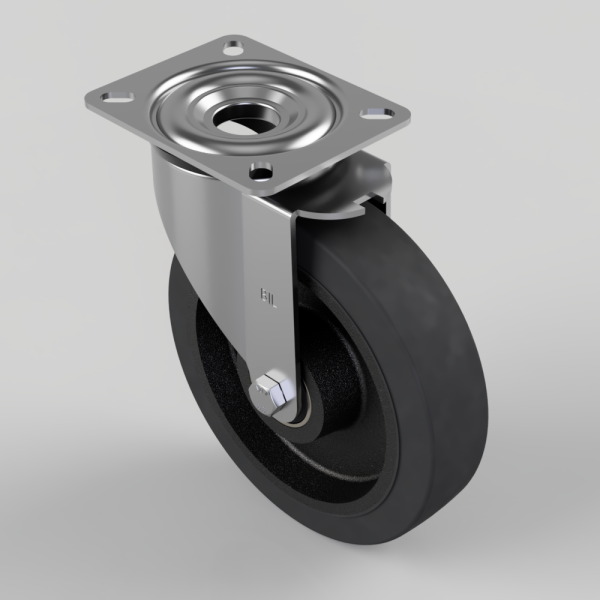

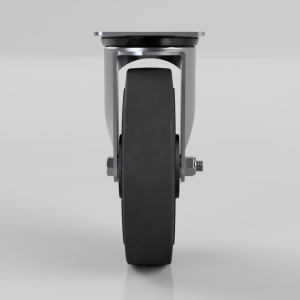

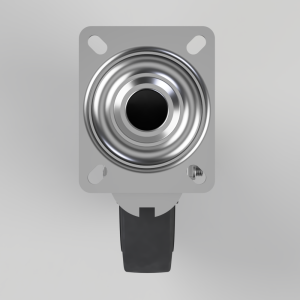

Pressed steel swivel castor with a top plate fixing fitted with a black elastic rubber tyre with cast iron centre with ball journal bearings. Wheel diameter 200mm, tread width 50mm, overall height 235mm, top plate 135mm x 110mm, hole centres 105mm x 80mm. Load capacity 400kg.

Additional information

Bearing Type

Ball

Castor Type

Swivel

Colour / Shore Hardness

Black Elastic Rubber on Cast Iron Rim / 75 Shore A

Diameter (mm)

200

Fixing Option

Plate

Fork Thickness (mm)

3.5

Height (mm)

235

Hole Centres (mm)

105 x 80

Load Capacity (kg)

400

Plate Size (mm)

135 x 110

Swivel Radius (mm)

153

Temperature Resistance

-20 °C TO +60 °C

To Suit Fixing Bolt (mm)

10

Top Plate Thickness (mm)

3.5

Tread (mm)

50

Weight 5.062 kg
Wheel Material

Rubber on Cast Iron
