Elastic Rubber on Aluminium Plate Swivel Castor 200mm 500kg Load

£112.12 excl. VAT £134.54

Product code: BZSAB200ERBJ

Klarna
Downloads: PDF Datasheet PDF Drawing CAD Drawing

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

Description

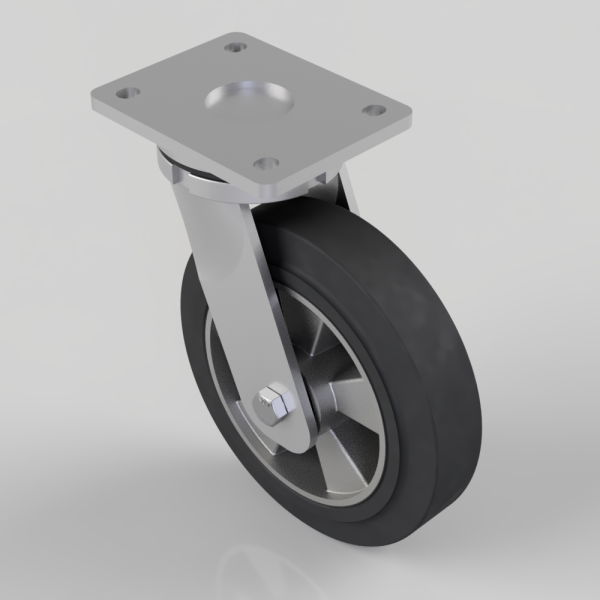

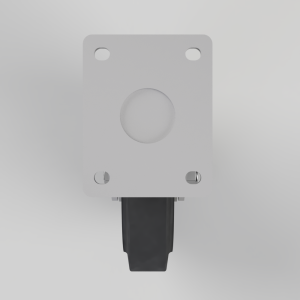

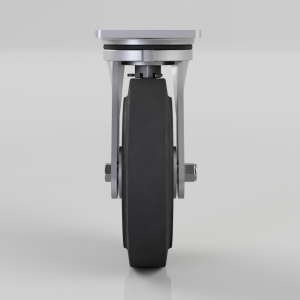

Fabricated yellow ROHS zinc plated swivel castor with plate fixing fitted with a black high elastic natural 65 shore A rubber aluminium centred wheel with ball bearings. Wheel diameter 200mm, tread width 50mm, overall height 250mm, plate size 138mm x 110mm, hole centrtes 105mm x 80mm/75mm. Load capacity 500kg at 4kph – At 6 kph speed, the load of each wheel is advised to be 80% of the load at 4kph – At 10 kph speed, the load of each wheel is advised to be 55% of the load at 4 kph. REACH compliant also PAH-Free rubber to confirm to EU-directive 2005/69/EC

** FOR INTERNAL AND EXTERNAL TOWING USE **
