0Nylon Plate Swivel Castor Brake 75mm 350kg Load
£96.08 excl. VAT £115.30
Product code: BZLC75NYBJ
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description

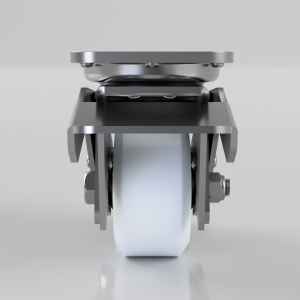

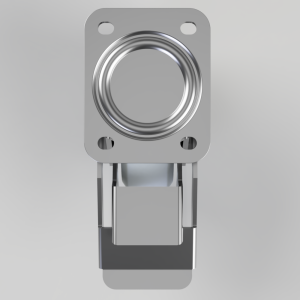

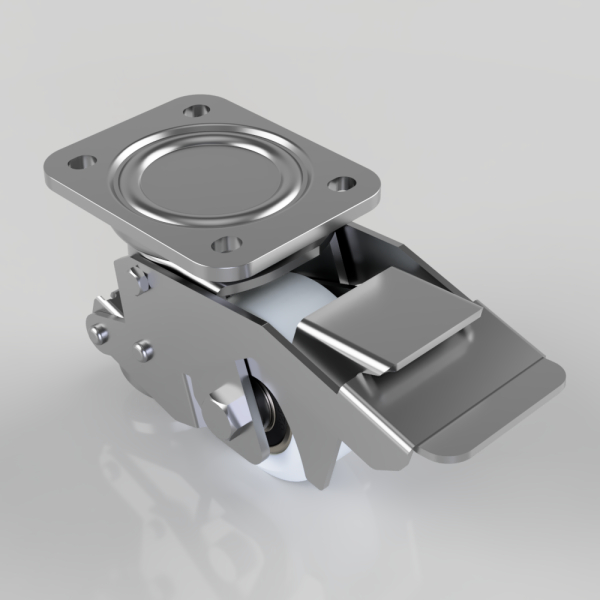

A pressed steel swivel ‘Lifting Castor’. This has a top plate fixing and is fitted with a white nylon wheel and double ball bearing.
Wheel diameter 75mm, tread width 40mm, overall height retracted 112mm, extended 120mm, plate size 108mm x 88mm, hole centres 80mm x 60mm. Load capacity 350kg.
**Manufactured to Order**
Additional information
Bearing Type | Ball |
---|---|
Castor Type | Swivel |
Colour / Shore Hardness | White Nylon |
Diameter (mm) | 75 |
Fixing Option | Plate |
Fork Thickness (mm) | 4 |
Height (mm) | 120 |
Hole Centres (mm) | 80 X 60 |
Load Capacity (kg) | 350 |
Plate Size (mm) | 108 x 88 |
Retracted Height (mm) | 112 |
Swivel Radius (mm) | 148 |
Temperature Resistance | -30 °C TO +80 °C |
To Suit Fixing Bolt (mm) | 8 |
Top Plate Thickness (mm) | 6 |
Tread (mm) | 40 |
Weight | 2.17 kg |
Wheel Material | Nylon |
