Polypropylene Bolt Hole Swivel Castor Brake 100mm 160kg Load

£9.48 excl. VAT £11.38

Product code: BZMM100PLBH12SWB

Klarna
Downloads: PDF Datasheet PDF Drawing CAD Drawing

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

Description

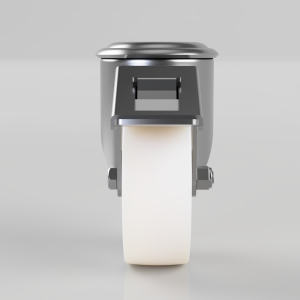

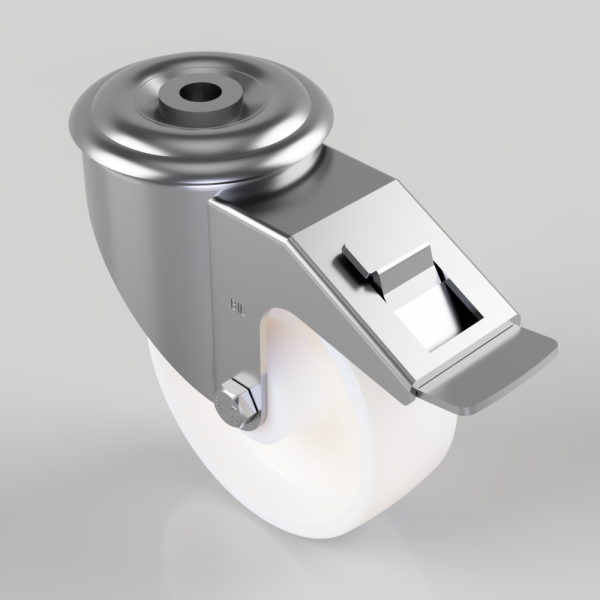

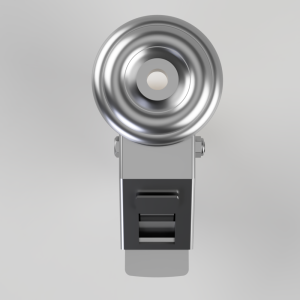

Pressed steel swivel castor with 12mm bolt hole fixing fitted with a white polypropylene wheel with plain bore and swivel wheel brake. Wheel diameter 100mm, tread width 36mm, overall height 128mm. Load capacity 160kg.

Additional information

Bearing Type

Plain

Castor Type

Swivel with Total Lock Brake

Colour / Shore Hardness

White Polypropylene

Diameter (mm)

100

Fixing Option

Bolt Hole

Fork Thickness (mm)

2.5

Head Dia (mm)

76

Height (mm)

128

Load Capacity (kg)

160

Swivel Radius (mm)

119

Temperature Resistance

-20 °C TO +80 °C

To Suit Fixing Bolt (mm)

12

Tread (mm)

36

Weight .756 kg
Wheel Material

Polypropylene
