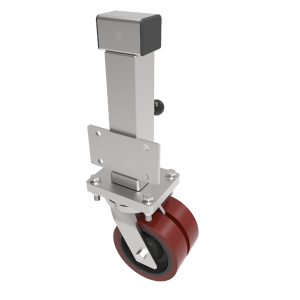

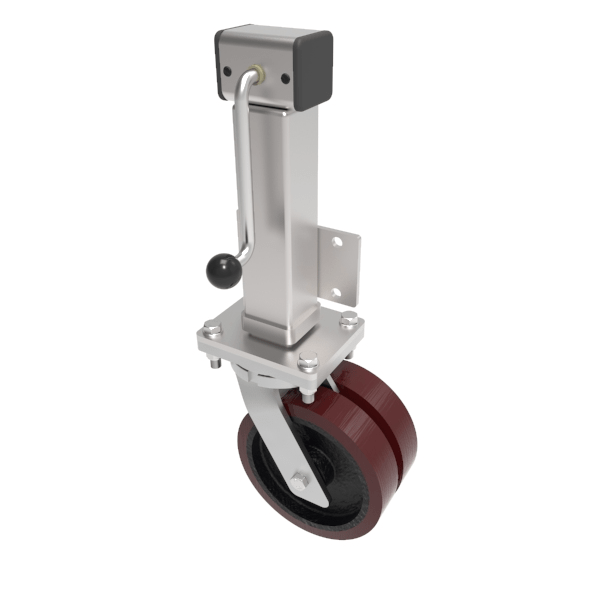

Polyurethane Cast Iron Plate Swivel Castor 250mm 2800kg Load
Original price was: £1,014.76.£569.22Current price is: £569.22. excl. VAT £683.06
Product code: JAZHD2XL250PTBJ
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description
Side plate fixing fabricated zinc plated jacking unit fitted with a twin wheel 250mm swivel castor with 2 x polyurethane on cast iron centred ball bearing wheels, Tread width 60mm x 2 plate size 200mmmm x 110mm, hole centres 135mm x 80mm, height 719mm/869mm, maximum lift is 150mmmm. Load capacity 2800kg.Please note Jacking castors are rated on a different principal to other castors and we recommend the total lifted load is divided over just 2 jacking units. for other dimensions please refer to the BIL catalogue or request a drawing. When jacked up to the height please beware of any obstacles as a sudden shock could result in the inner square tube bending around the outer tube.
DO NOT OVERWIND Handle excessively more than what is needed as this will cause the pin in the gearbox to shear.
(This is a safety precaution against over loading the unit)
Additional information
| Bearing Type | Ball |
|---|---|
| Castor Height (mm) | 314 |
| Castor Type | Swivel |
| Colour / Shore Hardness | Brown Polyurethane on Cast Iron Rim / 94 Shore A |
| Diameter (mm) | 250 |
| Fixing Option | Plate |
| Handle Option | Fixed |
| Height (mm) | 731 / 881 |
| Lifting Stroke (mm) | 150 |
| Load Capacity (kg) | 2800 |
| Swivel Radius (mm) | 220 |
| Temperature Resistance | -20 °C TO +80 °C |
| To Suit Fixing Bolt (mm) | 16 |
| Tread (mm) | 2 x 60 |
| Weight | 33.826 kg |
| Wheel Material | Polyurethane on Cast Iron |
