Polyurethane Nylon Plate Swivel Castor Brake 150mm 400kg Load

£74.74 excl. VAT £89.69

Product code: SSMM150NPBSWB

Klarna
Downloads: PDF Datasheet PDF Drawing CAD Drawing

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

Description

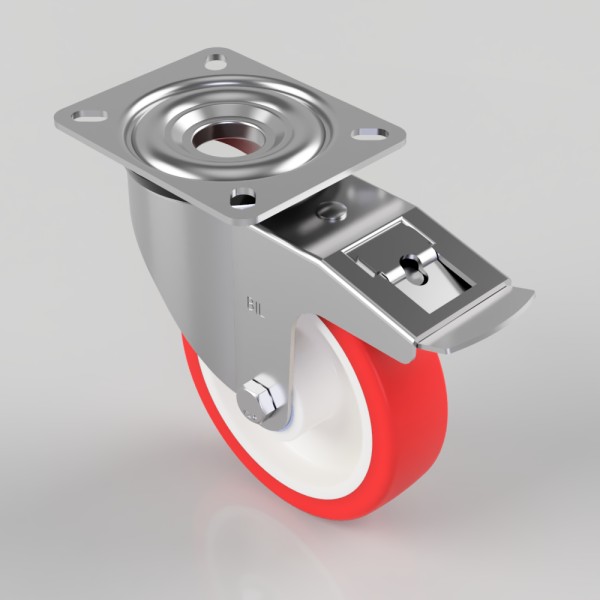

Grade 304 Pressed stainless steel swivel castor with a top plate fixing fitted with a red polyurethane white nylon centred wheel with roller bearing and total lock brake. Wheel diameter 160mm, tread width 40mm, overall height 190mm, top plate 135mm x 110mm, hole centres 105mm x 80mm. Load capacity 400kg.

Additional information

Bearing Type

Roller

Castor Type

Swivel with Total Lock Brake

Colour / Shore Hardness

Red Polyurethane on Nylon Rim / 96 Shore A

Diameter (mm)

150

Fixing Option

Plate

Fork Thickness (mm)

2.5

Height (mm)

190

Hole Centres (mm)

105 x 80

Load Capacity (kg)

400

Plate Size (mm)

135 x 110

Swivel Radius (mm)

167

Temperature Resistance

-20 °C TO +70 °C

To Suit Fixing Bolt (mm)

10

Top Plate Thickness (mm)

3.5

Tread (mm)

40

Weight 2.155 kg
Wheel Material

Polyurethane on Nylon
