Polyurethane Nylon Plate Swivel Castor Brake Locking Castor 80mm 200kg Load
Original price was: £137.56.£77.20Current price is: £77.20. excl. VAT £92.64
Product code: JAB80NPBSWB
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description

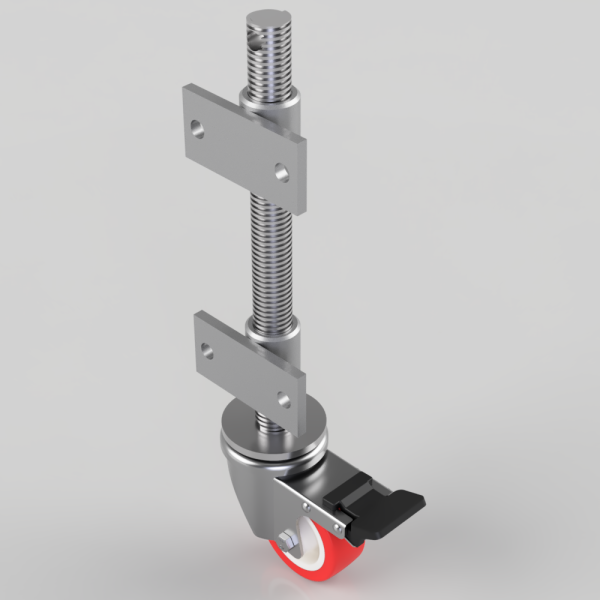

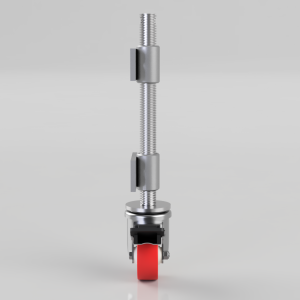

Open screw thread jacking castor with side fitting nuts with 160mm lift fitted with a 80mm white zinc plated swivel pressed steel castor with a red polyurethane tyred white nylon centred wheel with a roller bearing and a load capacity of 200kg Please note Jacking castors are rated on a different principal to other castors and we recommend the total lifted load is divided over just 2 jacking units.1 extra safety point is when jacked up please beware of any obstacles as a sudden shock could result in the inner square tube bending around the outer tube and this can also happen if the user forgets to take the brake off. Please refer to the BIL catalogue or request a drawing. Please refer to the BIL catalogue or request a drawing
Additional information
| Bearing Type | Roller |
|---|---|
| Castor Height (mm) | 110 |
| Castor Type | Swivel with Total Lock Brake |
| Colour / Shore Hardness | Red Polyurethane on Nylon Rim / 96 Shore A |
| Diameter (mm) | 80 |
| Fixing Option | Plate |
| Height (mm) | 426 |
| Lifting Stroke (mm) | 160 |
| Load Capacity (kg) | 200 |
| Swivel Radius (mm) | 125 |
| Temperature Resistance | -20 °C TO +70 °C |
| To Suit Fixing Bolt (mm) | 12 |
| Tread (mm) | 33 |
| Weight | 3.391 kg |
| Wheel Material | Polyurethane on Nylon |
