Removable Handle Nylon Plate Swivel Castor 125mm 600kg Load
Original price was: £262.65.£147.41Current price is: £147.41. excl. VAT £176.89
Product code: JAZHS125NYBRH
All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.
Description

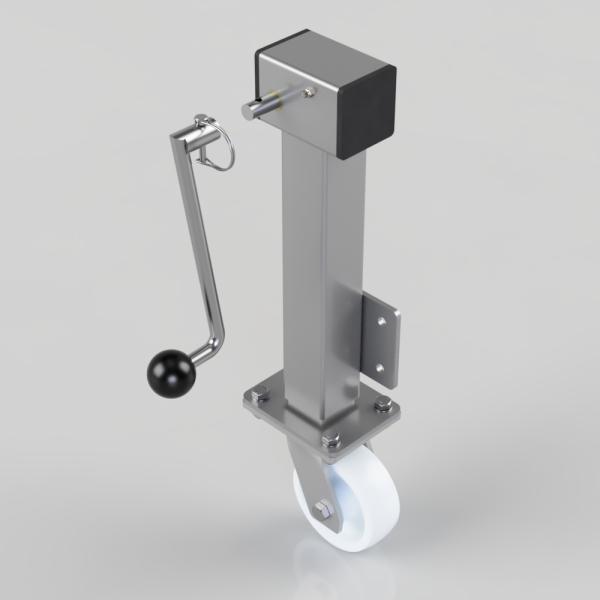

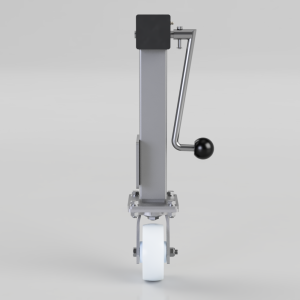

Side winding jacking unit ( removable handle ) with maximum lift of 200mm fitted with a Fabricated swivel castor with a top plate fixing fitted with a white nylon wheel with roller bearing. Wheel diameter 125mm, tread width 45mm,maximum Load for the complete unit is capacity 600kg.Please note Jacking castors are rated on a different principal to other castors and we recommend the total lifted load is divided over just 2 jacking units. for other dimensions please refer to the BIL catalogue or request a drawing.when jacked up to the height please beaware of any obstacles as a sudden shock could result in the inner square tube bending around the outer tube. DO NOT OVERWIND Handle excessively more than what is needed as this will cause the pin in the gearbox to shear.
(This is a safety precaution against over loading the unit)
Additional information
| Bearing Type | Roller |
|---|---|
| Castor Height (mm) | 165 |
| Castor Type | Swivel |
| Colour / Shore Hardness | White Nylon |
| Diameter (mm) | 125 |
| Fixing Option | Plate |
| Handle Option | Removable |
| Height (mm) | 572 / 772 |
| Lifting Stroke (mm) | 200 |
| Load Capacity (kg) | 600 |
| Swivel Radius (mm) | 101 |
| Temperature Resistance | -30 °C TO +80 °C |
| To Suit Fixing Bolt (mm) | 10 |
| Tread (mm) | 45 |
| Wheel Material | Nylon |
